  • August 7, 2020 at 9:17 pm #1179
    AvatarStephen Gooch
    Participant

    I have found a motor which adapts quite nicely, with a little engineer effort, material and time.

    Let me know if I can help.

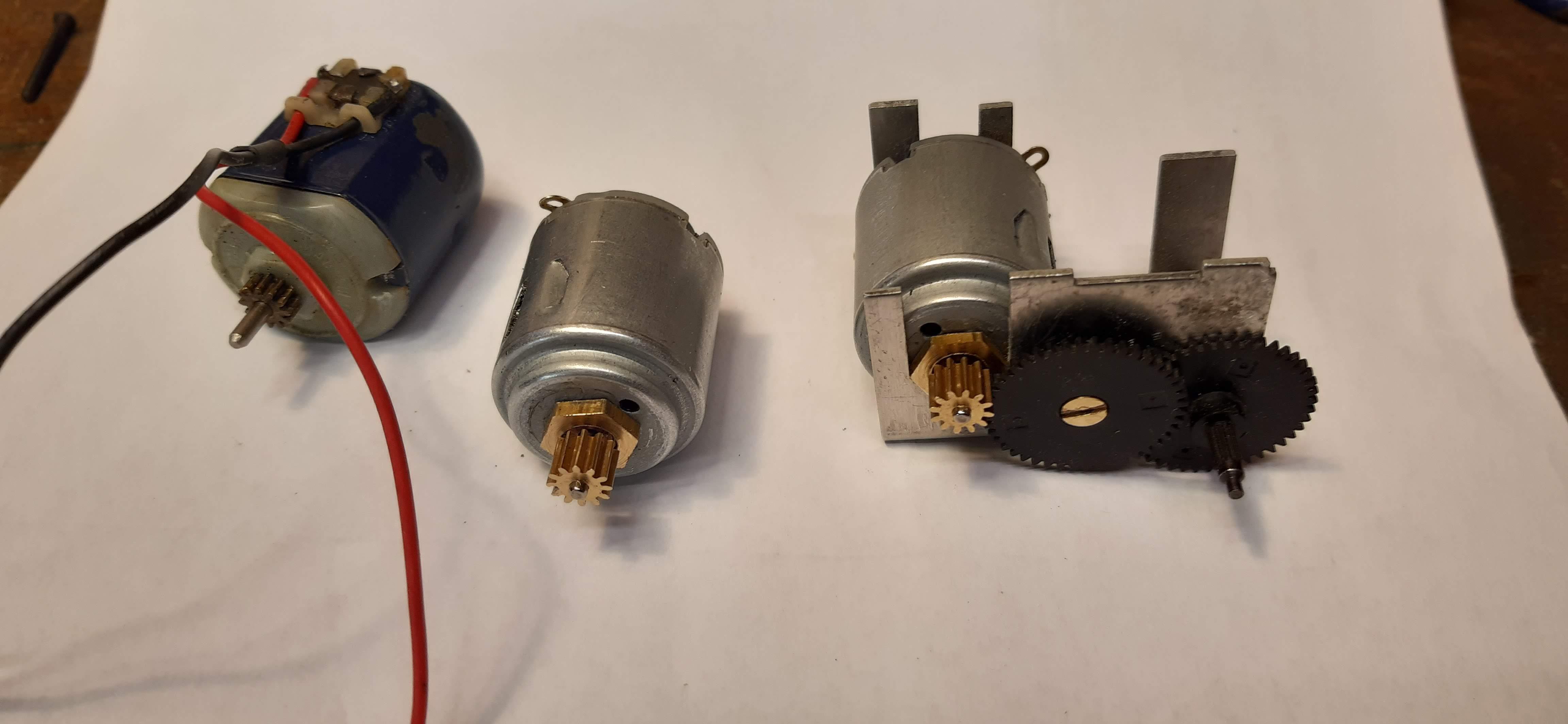

    Replacement motor in drive chassis

    August 8, 2020 at 3:45 am #1180
    AvatarSteveW23
    Participant

    Hi Stephen – thanks for the update. Could you please let us know the details of the above motor / where you purchased it from, etc.. I am also trying to find replacement motors for the original 35R Mabuchi motor, so any information would be really appreciated.

    Thanks!

    Steve

    August 9, 2020 at 8:45 pm #1181
    AvatarStephen Gooch
    Participant

    Hi Steve

    I shall pull some drawings and material schedules together. Just give me a few days.

    Regards

    Steve

    August 12, 2020 at 12:23 am #1182
    AvatarStephen Gooch
    Participant

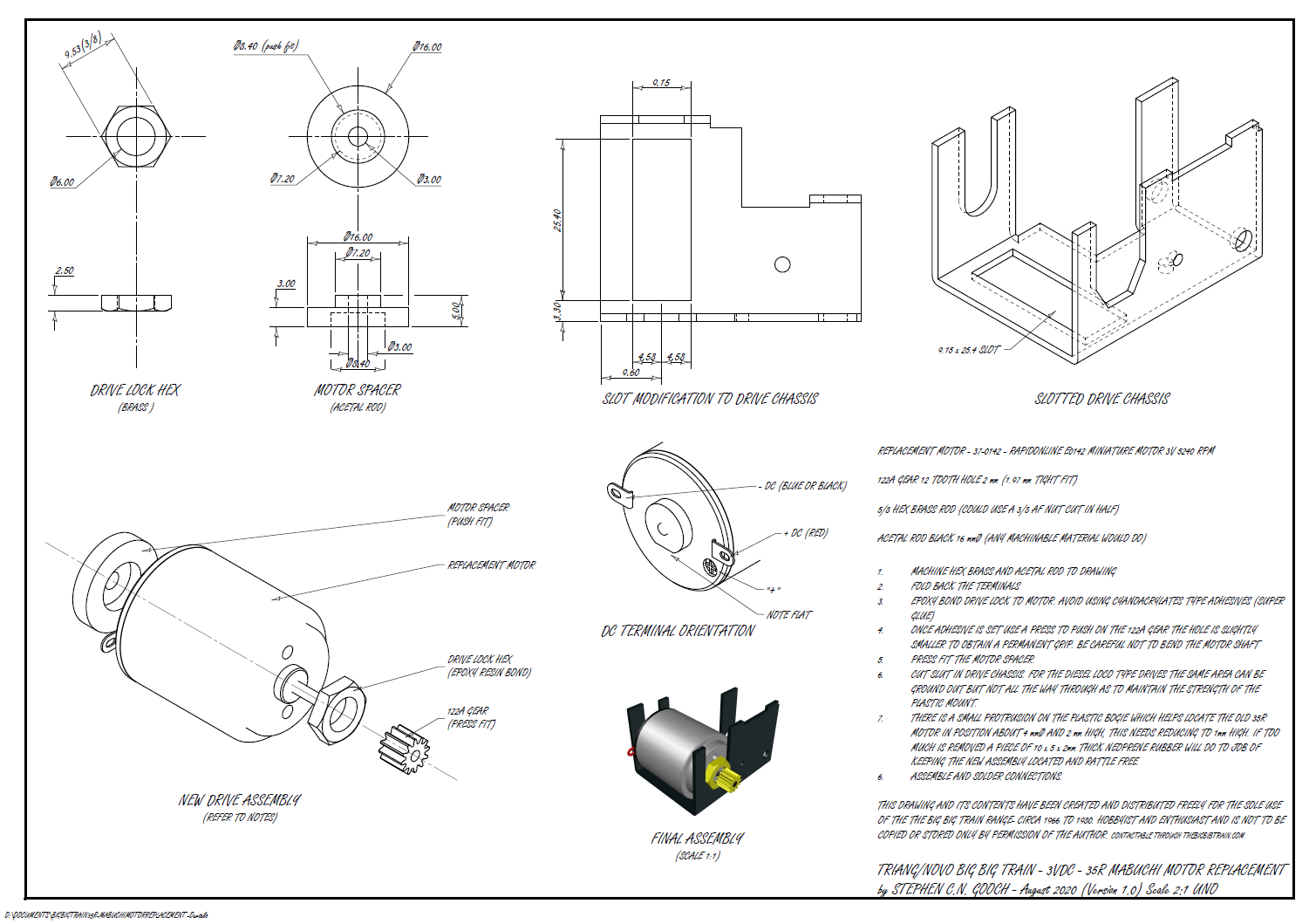

    This file is available as a PDF.

    I hope it helps.

    Feed back would be appreciated.

    Regards

    Steve

    August 13, 2020 at 10:22 pm #1185
    DaveDave
    Keymaster

    Hi there,

    With many thanks to Stephen Gooch I can make the PDF available here

    It will open in an new browser tab.

    September 6, 2020 at 4:17 pm #1189
    AvatarMikeh67
    Participant

    Awesome Steve – this will be great for keeping some locos going! I don’t need motors at the moment but know what to do next time I need one :-).

    September 6, 2020 at 9:11 pm #1192
    AvatarStephen Gooch
    Participant

    Mike – have you tried to download the PDF? I hope it helps.
